113-7130

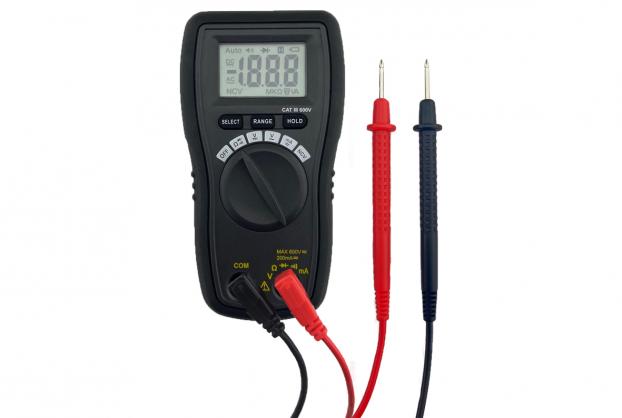

Digital Multi-Meter

• This is a low power consumption, high accuracy, and stable hand held 3 1/2digits
  (2000 counts) multimeter; with special designed IC to support true RMS measurement.
• It performs measurements of DC voltage / current, true RMS AC voltage / current,
  resistance, diode, continuity, and non-contact voltage sensing.
• With ETL&CE Approval.
• Category: CAT III 600V.
• Display LCD.
• Maximum Resolution: 2000, 3 1/2digits.
• Range: Auto / Manual.
• Data Refresh Rage: 3 times / sec.
• Measurement Rotation Switch.
• Continuity / Resistance / Diode.
• DC Voltage.
• AC Voltage.
• AC/DC Current.
• NCV(Non-contact voltage).
• Power Source: 2 x 1.5V AAA Battery (With Low battery indication).
• GENERAL SPECIFICATION:---
  DC Voltage Range: 0~600V DC.
  AC Voltage Range: 0~600V AC.
  AC/DC Current Range: 1~199.9mA.
  NCV Range: 80~1000V AC.
  Resistance Range: 0~19.99MΩ.
  Diode Range: Forward biasing 0~1.5V.
  Continuity: Buzzer will buzz when the resistance between two points is < 50 ohm.
                    “ OL ” will be displayed when the resistance between two points is > 200 ohm.


• This is a low power consumption, high accuracy, and stable hand held 3 1/2digits
  (2000 counts) multimeter; with special designed IC to support true RMS measurement.
• It performs measurements of DC voltage / current, true RMS AC voltage / current,
  resistance, diode, continuity, and non-contact voltage sensing.
• With ETL&CE Approval.
• Category: CAT III 600V.
• Display LCD.
• Maximum Resolution: 2000, 3 1/2digits.
• Range: Auto / Manual.
• Data Refresh Rage: 3 times / sec.
• Measurement Rotation Switch.
• Continuity / Resistance / Diode.
• DC Voltage.
• AC Voltage.
• AC/DC Current.
• NCV(Non-contact voltage).
• Power Source: 2 x 1.5V AAA Battery (With Low battery indication).
• GENERAL SPECIFICATION:---
  DC Voltage Range: 0~600V DC.
  AC Voltage Range: 0~600V AC.
  AC/DC Current Range: 1~199.9mA.
  NCV Range: 80~1000V AC.
  Resistance Range: 0~19.99MΩ.
  Diode Range: Forward biasing 0~1.5V.
  Continuity: Buzzer will buzz when the resistance between two points is < 50 ohm.
                    “ OL ” will be displayed when the resistance between two points is > 200 ohm.
