•Material: SCM440.
•Hardness: 45º~48º.
•Finish: color plating (plate with zinc).
•Using with 32mm spanner.
•Application: when the axle screw is damaged or with rust.
•Special twist shape provides an easier and quicker work.

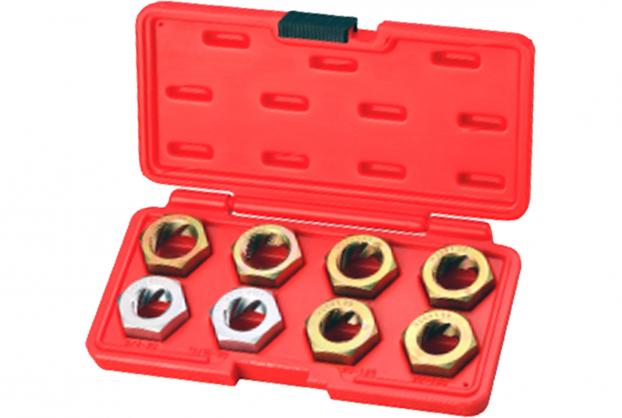

•This tool set accesses axle threads on spindles of eight popular die sizes for both cleaning and rethreading work.
•Die Sizes: M20 x 1.25, M20 x 1.50, M22 x 1.00, M22 x 1.50, M24 x 1.50,
   M24 x 2.00, 3/16" x 20 UNEF, 3/4" x 20 UNEF.

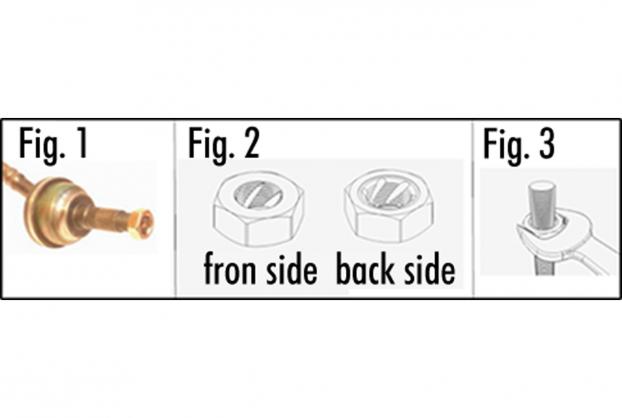

•Step 1: Remove the wheel axle nut. (refer to fig.1).
•Step 2: Choose a suitable die from the 8 pieces provided.
•Step 3: Screw the die onto axle spindle.
•Note: 1: the correct size of diameter and pitch is quite necessary.
           2: please take the die back-side toward to the target axle spindle (fig.2).
•Step 4: Using a 32 mm spanner and renew the thread clockwise (fig.3).
