•Die Material: SCM440. Hardness: 45~48º.
•Finish: color plating (plate with zinc).
•Using with 32mm spanner.

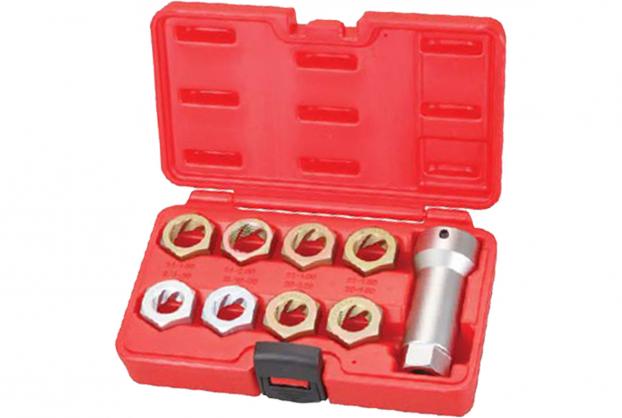

•This tool set accesses axle threads on spindles of eight popular die sizes for both cleaning and rethreading work.
•Die Sizes: M20 x 1.25, M20 x 1.50, M22 x 1.00, M22 x 1.50, M24 x 1.50, M24 x 2.00, 3/16" x 20 UNEF, 3/4" x 20 UNEF, Extension Bar (OD27mm), Material: S45C. Special twist shape provides an easier and quicker work.
•Application: when the axle screw is damaged or with rust.

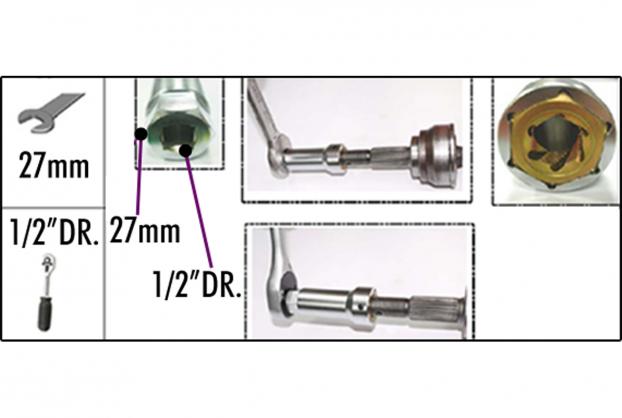

•Step 1: Remove the wheel axle nut.
•Step 2: Choose a suitable die from the 8pcs provided.
•Step 3: Screw the die onto axle spindle, then connect extension bar with the die.
•Step 4: Using wrench or torque wrench for rethreading work.
•Advantage: torque wrench is also available, in the limited work space, working with torque wrench could fasten the whole tool to avoid lopsided situation.
