Engine Repair Tools

911-1038

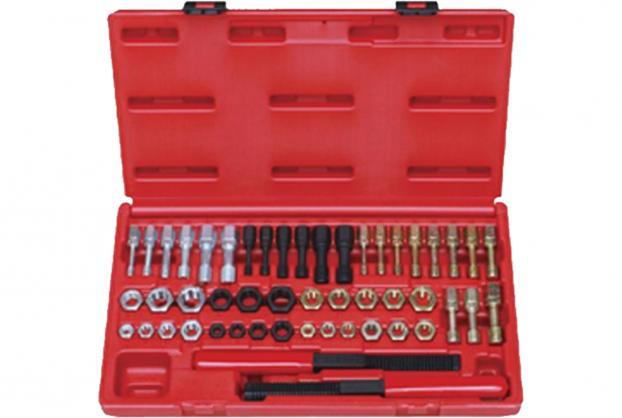

51pcs Thread Restoring Tap, Die & File Kit
← →
Qty :
Add to Inquiry List

•Pitch Sizes:---
 1pc SAE thread restoring file (8 pitches: 11, 12, 13, 14, 16, 18, 20 & 24 TPI) with red plastic file handle.
 1pc SAE thread restoring file (8 pitches: 8, 9, 10, 11, 12, 20, 27, 28 & 32 TPI) with red plastic file handle.
 1pc Metric thread restoring file (8 pitches: 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50 & 3.00mm) with red plastic file handle.
•Rethreading Dies Sizes:---
 1/4”-20, 5/16”-18, 3/18”-16, 7/16-14, 1/2”-13, 9/16”-12, 5/8”-11 USS COARSE
 1/4”-28, 5/16”-24, 3/8”-24, 7/16”-20, 1/2”-20, 9/16”-18, 5/8”-18 SAE FINE
 6 x 1.00, 8 x 1.25, 8 x 1.50, 10 x 1.00, 10 x 1.25, 10 x 1.50, 11 x 1.50, 12 x 1.25, 12 x 1.50, 12 x 1.75, 14 x 1.50mm.
•Rethreading Taps Sizes:---
 1/4”-20, 5/16”-18, 3/18”-16, 7/16-14, 1/2”-13, 9/16”-12 USS COARSE
 1/4”-28, 5/16”-24, 3/8”-24, 7/16”-20, 1/2”-20, 9/16”-18 SAE FINE
 6 x 1.00, 8 x 1.25, 8 x 1.50, 10 x 1.00, 10 x 1.25, 10 x 1.50, 11 x 1.50, 12 x 1.25, 12 x 1.50, 12 x 1.75, 14 x 1.5mm.
•Do not use on hardened threads or to cut new threads. Use oil on threads for longer die life.

•Pitch Sizes:---
 1pc SAE thread restoring file (8 pitches: 11, 12, 13, 14, 16, 18, 20 & 24 TPI) with red plastic file handle.
 1pc SAE thread restoring file (8 pitches: 8, 9, 10, 11, 12, 20, 27, 28 & 32 TPI) with red plastic file handle.
 1pc Metric thread restoring file (8 pitches: 0.75, 1.00, 1.25, 1.50, 1.75, 2.00, 2.50 & 3.00mm) with red plastic file handle.
•Rethreading Dies Sizes:---
 1/4”-20, 5/16”-18, 3/18”-16, 7/16-14, 1/2”-13, 9/16”-12, 5/8”-11 USS COARSE
 1/4”-28, 5/16”-24, 3/8”-24, 7/16”-20, 1/2”-20, 9/16”-18, 5/8”-18 SAE FINE
 6 x 1.00, 8 x 1.25, 8 x 1.50, 10 x 1.00, 10 x 1.25, 10 x 1.50, 11 x 1.50, 12 x 1.25, 12 x 1.50, 12 x 1.75, 14 x 1.50mm.
•Rethreading Taps Sizes:---
 1/4”-20, 5/16”-18, 3/18”-16, 7/16-14, 1/2”-13, 9/16”-12 USS COARSE
 1/4”-28, 5/16”-24, 3/8”-24, 7/16”-20, 1/2”-20, 9/16”-18 SAE FINE
 6 x 1.00, 8 x 1.25, 8 x 1.50, 10 x 1.00, 10 x 1.25, 10 x 1.50, 11 x 1.50, 12 x 1.25, 12 x 1.50, 12 x 1.75, 14 x 1.5mm.
•Do not use on hardened threads or to cut new threads. Use oil on threads for longer die life.
