•These specialised tools are designed to both remove the diesel pump (detaching the pump from the pump sprocket) and to retain the position of the pump sprocket in-situ, whilst the pump is removed and off the engine.
•This allows the front sprockets/timing chain configuration to remain undisturbed and under reducing the level of engine dis-assembly required.
•The application procedure for fitting and use of these tools, is identical.
•The main purpose of these tools is extract the pump from the pump sprocket and to retain the position of the pump sprocket in-situ, whilst the pump is removed and off the engine.
•This allows the front sprockets/timing chain configuration to remain undistubed and under tension, thus reducing the level of engine dis-assembly required.

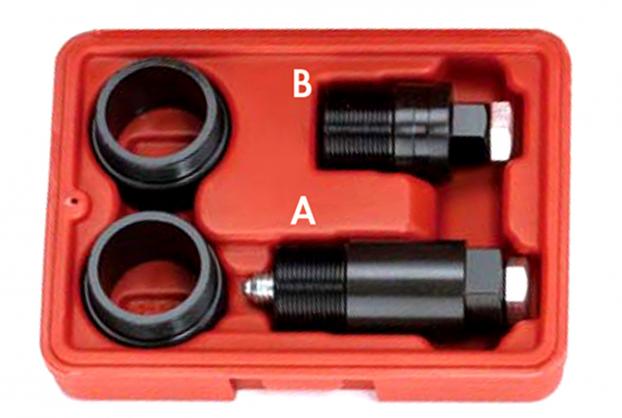

•A: Covers injection/HP pump removal on BMW models with M47/M47TU and M57/M57TU 2.0 & 3.0 diesel engines.
•B: Covers injection/HP pump removal on Land Rover Freelander and Rover 75 models with Td4 and M47 2.0 diesel engines.
•A and B similar, with the B being shorter in order to accommodate restricted access on the engines fitted transversely.
