Diesel Engine Setting / Locking Kit For Vauxhall / Opel / Saab 1.9D CDTi/TiD/TTiD, 2.0 CDTi - Belt Drive

European Cars Repair Tools

914-5833

← →

Description
Specification

• Suitable for the timing belt replacement on Vauxhall / Opel and Saab
vehicles fitted with 1.9CDTi/TiD engine.

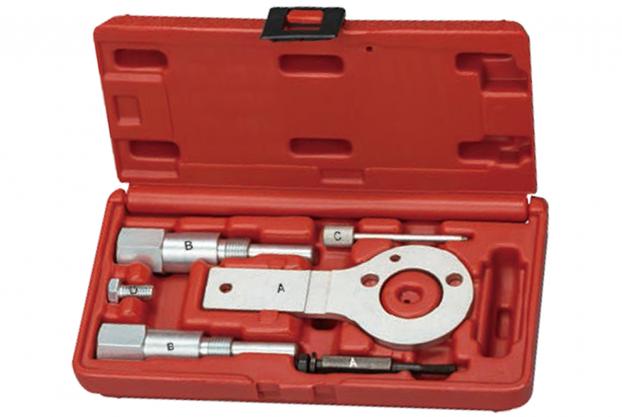

• The kit contains the camshaft alignment screw, the crankshaft pulley
alignment tool and the tensioner pin.

• A.) Crankshaft Locking Tool (main body & spindle).
        OEM-Vauxhall / Opel: EN46788. OEM-Saab: 32 025 009.
• B.) Camshaft Setting Tool (2 per kit).
        OEM-Vauxhall / Opel: EN46789. OEM-Saab: 32 025 008.
• C.) Auxiliary Belt Tensioner Locking Pin.
        OEM-Vauxhall / Opel: KM6349.   OEM-Saab: 87 92 335.

• Application (Model):---
Vauxhall / Opel: Astra - H (04-11), Astra - J (10-12), Insignia (08-12),
Signum (04-08), Vectra - C (04-08), Zafira - B (05-12).
Saab: 9 - 3 (04-10), 9 - 5 (05-10).

• Engine Code:---
1.9D CDTi:Z19DT, Z19DTL, Z19DTH, Z19DTJ, 1.9D TiD: Z19DT, Z19DTH,
1.9D TTiD: Z19DTR, 2.0D CDTi/Ecoflex: LBS/A20DTH, LBY/A20DTR,
LBQ/A20DTL, LBR/A20DT, LBX/A20DTJ, LCD/A20DTC.

• Application (Model):---
Vauxhall / Opel: Astra - H (04-11), Astra - J (10-12), Insignia (08-12),
Signum (04-08), Vectra - C (04-08), Zafira - B (05-12).
Saab: 9 - 3 (04-10), 9 - 5 (05-10).

• Engine Code:---
1.9D CDTi:Z19DT, Z19DTL, Z19DTH, Z19DTJ, 1.9D TiD: Z19DT, Z19DTH,
1.9D TTiD: Z19DTR, 2.0D CDTi/Ecoflex: LBS/A20DTH, LBY/A20DTR,
LBQ/A20DTL, LBR/A20DT, LBX/A20DTJ, LCD/A20DTC.
