• This comprehensive set of tool enables the correct engine timing
  to be made when replacing the timing belt.
• Suitable for using on the most recent cars with either HPi (petrol)
  or HDi (diesel) engine.

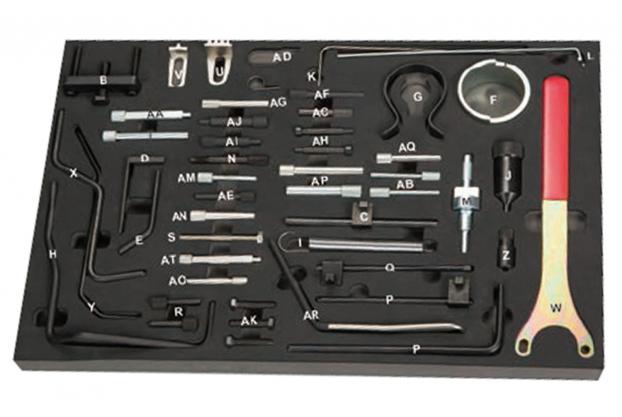

• A.) Timing Belt Retaining Clip.
        OEM: 4533-TAD, 0132AK, 0188-K, 0153AK, 0189K, 0153-AE.
• B.) Flywheel Pulley Puller. OEM: 0174, 0188P, 018892, 7015-T.
• C.) Tensioning Lever. OEM: 0188J2.
• D.) Tensioning Tool. OEM: 4507-TJ, 0188Q1, 0132X1Z, 0188Q1, 0132X1Z, 0132X.
• E.) Crankshaft Timing Pin 6 mm. OEM: 4507-TA, 0132Z, 0132QZ.
• F.) Tensioner Adjustment Tool. OEM: 0189S1.
• G.) Crankshaft Pulley Centralizer. OEM: 0188AH.
• H.) Flywheel Timing Pin 8 mm.
        OEM: 1 860 863 000, 0153N, 0288D, 7099-TM, 0188Y, 0188D.
• I.)  Flywheel Setting Pin with Spring. OEM: 0118X.
• J.) Flywheel Locking Pin. OEM: 0189C.
• K.) Auxiliary Belt Tensioner Locking & Crank Pinion Alignment Tool. 0188Q2.
• L.) Tensioner Locking Tool.       OEM: 0189S2.
• M.) Flywheel Alignment Pin.     OEM: 0189R.
• N.) Injection Pump Timing Pin. OEM: 4527-TS1.
• O.) Cam Belt Tensioner Locking Pin. OEM: 4200TA, 0153AL.
• P.) Tensioning Lever HDi. OEM: 0188J2.
• Q.) Tensioning Lever.       OEM: 5711-TE, 0178E, 0188J/J1.
• R.) Camshaft Timing Pin (2). OEM: 9041-TZ, 5711-TC.
• S.) M8 x 70 mm Set Screw.   OEM: M8 x 70 mm.
• T.) Camshaft Locking Pin. OEM: 0178D, 0132AB, 303-732, 4527-T, 21-260, 5711-TD.
• U.) Flywheel Locking Tool. OEM: 1 860 898 000.
• V.) Flywheel Locking Tool. OEM: 1 860 771 000.
• W.) Matching Tool.
• X.) Cranked Setting Pin 8 mm. 0188D, 7004TG, 0153G, 7014-TJ, 0153N.
• Y.) Flywheel Timing Pin 7 mm. OEM: 7017-TR.
• Z.) Flywheel Locking Pin. OEM: 0132QZ, 4507-TA.
• AA.) Intel Camshaft Timing Pin (VTC).
• AB.) Camshaft Locking Pin 5 mm (2). OEM: 0132-AB, 4527-TS2, 5711-TD.
• AC.) Camshaft Timing Pin (2). OEM: 7014-TM.
• AD.) Retaining Pin (Roller).
• AE.) Crankshaft Timing Pin. OEM: 0188H.
• AF.)  Camshaft Timing. OEM: 0132AJ2, 0188M, 4533-TAC2.
• AG.) Crankshaft Timing Pin. 0189-B, 303-735, MOT 1430, 0194B, 21-263.
• AH.) Crankshaft Timing Pin. OEM: 0132AJ2, 4533-TAC1, 0132AJ1.
• AI.)  Crankshaft Timing Pin.  OEM: 0189A, 1 871 008 100.
• AJ.) Crankshaft Timing Pin.  OEM: 0189AZ.
• AK.) Locking Bolt (Set of 3). OEM: 4533-TAC1, 0153G.
• AL.) Crankshaft Locking Pin. OEM: 0189-L.
• AM.) Injection Pump Locking Pin.  OEM: 4527-TS1.
• AN.) Crank/Camshaft Locking Pin. OEM: 5711-TB, 0178B.
• AO.) Crank/Camshaft Locking Pin. OEM: 7004-TG, 0132R.
• AP.) Crank/Camshaft Locking Pin.  OEM: 4507-TB.
• AQ.) Injection Pump Locking Pin.   OEM: 5711-TA, 0178A.

• Citroen: C1 (05-09), C2 (03-09), C3/Pluriel (02-09), C4 (04-09), C4 Picasso (06-09),
  C5 I/II/III (04-09), C6 (06-09), C8 (02-07), Xantia (98-01), Xsaa (99-06),
  Xsara Picasso (99-09), Evasion/Synergie (99-02), Berlingo (99-09),
  Dispatch/Jumpy (99-09), Relay/Jumper I/II (01-06), Xsara (98-04), C15 (01-06),
  Dispatch/Jumpy (99-07), Berlingo (98-07), Saxo (96-03), ZX (91-98), Xsara (97-00),
  Xantia (93-01), XM (90-01), Evasion/Synergie (95-00), C15 (93-02), Berlingo (96-99),
  Dispatch/Jumpy (95-01), Relay/Jumper (94-02), C2 (03-09), C3/Pluriel (04-09),
  C4 (04-09), Saxo (00-03), Xsara (00-04), Berlingo (01-09), Xsara (00-05),
  Xsara Picasso (99-07), C4 (04-09), C4 Picasso (06-09), C5/ II/III (00-09), C8 (02-09),
  Evasion/Synergie (00-02), Dispatch/Jumpy (00-09), C2 (03-09), C3/Pluriel (02-09),
  C4 (04-08), AX (91-97), Saxo (96-03), ZX (91-98), Xsara (97-06), Xsara Picasso (99-06),
  Xantia (93-01), XM (93-00), Evasion/Synergie (94-01), C15 (92-98), Berlingo (97-09),
  Relay/Jumper (94-06).

• Peugeot: 107 (05-09), 1007 (05-09), 206/CC (99-09), 207 (06-09), 306 (99-02),
  307/CC (01-09), 308 (07-09), 406 (98-04), 406 Coupe (00-06), 407 (04-09),
  607 (00-09), 806 (99-02), 807 (02-07), Partner (99-08), Expert I/II (99-07),
  Boxer I/II (02-06), 206 (98-04), 306 (98-02), Partner (98-07), Expert (99-07),
  106 (94-03), 306 (93-00), 406 (95-00), 605 (93-00), 806 (95-00), Partner 1/II (96-00),
  Expert (95-00), Boxer (94-02), 106 (00-03), 1007 (05-09), 206/CC (00-09), 207 (06-09),
  306 (00-02), 307 (01-08), Partner (00-09), 206/CC (98-07), 307/CC (01-09),
  406/Coupe (99-06), 407/Coupe (04-09), 607 (00-09), 806 (00-02), 807 (02-09),
  Expert I/II/III (00-09), 106 (93-03), 1007 (05-09), 205 (89-96), 206/CC (98-09),
  207 (06-08), 306 (93-03), 307/CC (01-09), 405 (92-97), 406 (95-02), 406 Coupe (97-02),
  605 (93-00), 806 (94-01), Partner I/II (96-07), Boxer I/II (94-06).
