• For Fiat / Iveco / Citroen / Peugeot / Renault / Vauxhall / Opel -
  2.5D/DT, 2.8D/TDi/DCi/HDi/JTD - Belt Drive

• The set includes the locking pin for 2.5D and 2.8D diesel engines and
  later 2.8 DTi/DCi/JTD/HDi variant of this popular van engine, and also
  includes tensioner retaining tool which retains the tension plunger in a
  retracted position during the belt change (C).

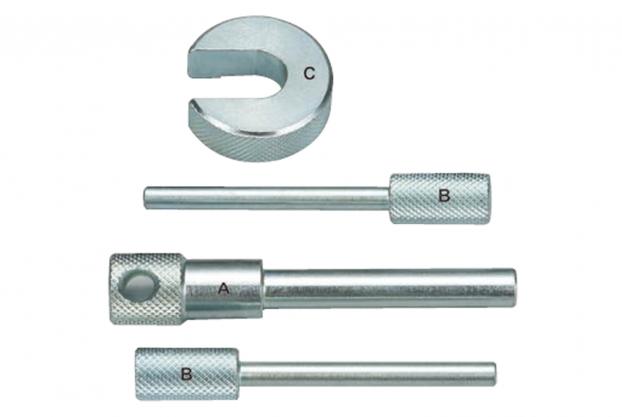

• The locking pin for the injection pump - non common rail (B) and the
  flywheel (A) is included in this set.

• A.) Flywheel Locking Pin. OEM-Renault: MOT 1054. OEM-Vauxhall/Opel: KM-6031.
• B.) Cam/Pump Locking Pin (2 per set). OEM-Citroen: 1 860 617 000.
        OEM-Fiat: 1 860 617 000. OEM-Iveco: 99360608/A606177. OEM-Renault: MOT 910.
        OEM-Vauxhall/Opel: KM-966.
• C.) Tensioner Retaining Tool. OEM-Citroen: 1 860 638 000. OEM-Fiat: 1 860 638 000.
        OEM-Peugeot: 1 860 638 000.

• Application:---
  Citroen: Relay/Jumper (01-02), Relay/Jumper II (02-06).
  Fiat: Croma (86-97), Ducato (86-06), Talento (87-94).
  lveco: Daily (91-06), Turbo Daily 2.5, 2.8 (91-00).
  Peugeot: Boxer (00-02), Boxer II (02-06).
  Vauxhall / Opel: Arena (97-01), Movano-A (98-03).
  Renault: Mascot (99-07), Master(89-98), Master II (98-01), Traffic (80-00).

• Engine Code:---
  2.5D/DT: 8140.07, 8140.27, 8140.27S, 8140.47, 8140.47R, 8140.67F, 8140.97,
                  8144.21, 8144.61, 8144.67, 8144.91, 8144.97, 8144.97Y, S8U 720,
                  S8U 722, S8U 730, S8U 731, S8U 742, S8U 748, S8U 750, S8U 752,
                  S8U 758, S8U 770, S8U 772, S8U 780, S8U 782, S9U 700, S9U 702,
                  S9U 704, S9U 704, S9U 714, S9U 740.
  2.8D/TDi/HDi/DCi/JTD: 8140.43, 8140.63, 8140.23.37, 8140.43.37, 8140.43.37,
                   8140.43B, 8140.43C, 8140.43N, 8140.43R, 8140.43S, S9W 206,
                   S9W 208, S9W 212, S9W 700, S9W 702.
