• The associated tool uses with a number of Ford setting/locking kit is for
  locking the crankshaft in the timed position by locating into the flywheel.
• Suitable for counter-holding the crankshaft when releasing or tightening
  the crankshaft pulley bolts.
• Use on a wide range of Ford engine, particularly 1.8 TDDi/TDCi and
  2.0 TDCi diesel, 1.6 Ti-VCT and later 1.25/1.4 16v duratec petrol engines.

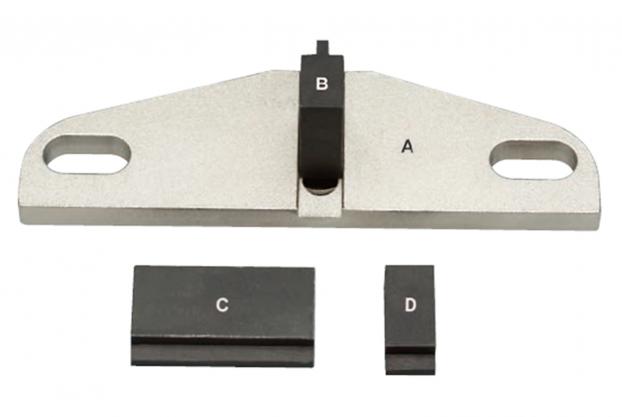

• A.) Flywheel Locking Tool - Base Plate. OEM: 303-393A (21-168).
• B.) Adaptor – (29 mm). OEM: 303-393A (21-168).
• C.) Adaptor – (42 mm). OEM: 303-393-02. D.) Adaptor – (11 mm). OEM: 303-393-01.

• Application:---
  Ford: C-MAX (07-12), Fiesta/Fusion (08-12), Focus (98-12), Focus/C-MAX (03-07),
           Galaxy (06-12), Grand C-MAX (10-12), Kuga (08-12), Mondeo (07-12),
           S-MAX(06-12), Tourneo Connect (02-12), Transit Connect (02-12).

• Engine Code:---
  1.25/1.4 16v Petrol Engine (Belt): RTJA, RTJB, SNJA, SNJB, SPJA, STJA, STJB.
  1.6 Ti-VCT Petrol Engine (Belt): HXDA, HXJA, HXJB, IQDA, IQDB, PNBA, PNDA,
                                                         RHBA, SIDA.
  1.8 TDi/TDDi/TDCi Diesel Engine (Belt): RTN, RTQ, RTP, BHDB, BHPA, C9DA,
                                                          C9DB, C9DC, F9DA, F9DB, FFBA, FFDA, FFWA,
                                                          HCPA, HCPB, P7PA, HCPB, P7PA, P9PA, QYBA,
                                                          QYWA, R2PA, R3PA, RWPA, KKDA.
  2.0/2.2 TDCi Diesel Engine (Belt): AZBA, AZWA, G6DA, G6DB, G6DC, G6DD,
                                                         G6DE, G6DF, G6DG, IXDA, KLBA, KNBA, LPBA,
                                                         Q4BA, QXBA, QXBB, QXWA, QXWB, TXBA, TXDA,
                                                         TXDB, TXWA, TYBA, TYDA, TYWA, UFBA, UFDA,
                                                         UFDB, UFWA, UKBA, UKDA, UKDB, UKWA
