Ford/GM/Chrysler Repair Tools
914-5748
• Tool of removal and installation is for the maintenance and the replacement.

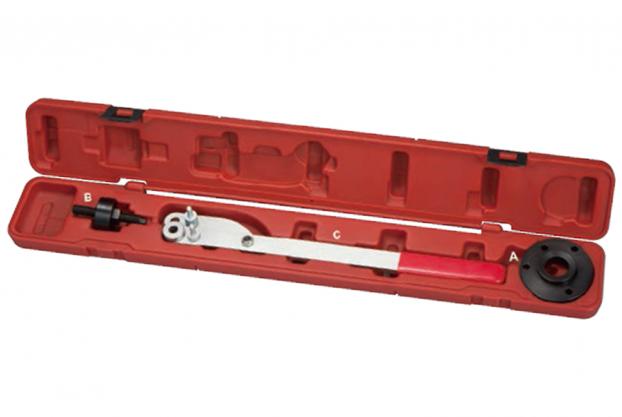

• A.) Crank Pulley Removal Plate.
B.) Crank Pulley Installer.
C.) Holding Tool.
• Application (Model): Ford Fiesta / Courier (-02) 1.25/1.4/1.6 16v,
Puma 1.4/ 1.6 (-98)/1.7 (-02)16v, Mazda 121/1.25 16v.
• Ford (Duratec):--- (Model / Engtine Code)
Fiesta / Courier (96–3 /97) Automatic Tensioner:
1.25–DHA / DHB / DHC / DHD(Belt). B Installer only.
Fiesta / Courier (4/97-02) Semi-Automatic Tensioner:
1.25–DHA / DHB / DHC / DHD / DHE / DHF / DHG (Belt), 1.4–FHA / FHE (Belt)
1.6–L1T / L1V (Belt): B Installer only.
Fiesta / Fusion (02-08): 1.25–F8JA / F8JB / FUJA / M7JA / M7JB (Belt),
1.4–FXJA / FXJB (Belt), 1.6–FYJA / FYJB (Belt).
Fiesta 2.0 ST150 (04-08) N4JB (Chain). Puma (97-02) 1.4–FHD / FHF (Belt),
1.6–L1W (Belt), 1.7–MHA / MHB (Belt): 1.4/1.6 - 7/98 1.7 All.
Focus / C-Max (98-08) 1.4–FXDA / FXDB / FXDC / FXDD / ASDA / ASDB / FXJA (Belt),
1.6–FYDA / FYDB / FYDC / FYDD / HWDA / HWDB (Belt).
Focus (98-05) 1.8–EYDB / EYDC / EYDD / EYDE / EYDF / EYDG / EYDI / EYDJ (Belt),
2.0–EDDB / EDDC / EDDD / EDDF (Belt).
Focus / C-Max (03-08) 1.8–QQDA / QQDB / QQDC / CSDA / CSDB (Chain),
2.0–AODA / ADOB (Chain).
Focus 2.0RS / ST170 (01-05) HMDA / ALDA (Belt).
Mondeo (93-98) 1.6–L1F / L1J (Belt), 1.8–RKA / RKB (Belt), 2.0–NGA (Belt).
Mondeo (97-00) 1.6–L1L / L1N / L1Q (Belt), 1.8–RKF / RKH / RKJ / RKK (Belt),
2.0–NGB / NGC / NGD (Belt).
Mondeo (00-07) 1.8–CCBB / CGBA / CGBB / CHBA / CHBB (Chain),
2.0–CJBA / CJBB (Chain).
S-Max / Galaxy (06-08) 2.0–AOWA (Chain).
Cougar (98-01) 2.0–EDBA / EDBB / EDBC / EDBD (Belt).
Tourneo Connect / Transit Connect (02-06) 1.8–EYPA / EYPC (Belt).
Mazda 121 (95-00), 1.25–DHA (Belt): Installer only. 2 (02-07) 1.25–FUJA / FUJB (Belt),
1.4–FXJA / FXJB (Belt), 1.6–FYJA (Belt).
3 (03-06) 6 (02-07) 1.8-L8 (Chain), 2.0–LF (Chain). Tribute (01-04) 2.0–YF (Belt).
