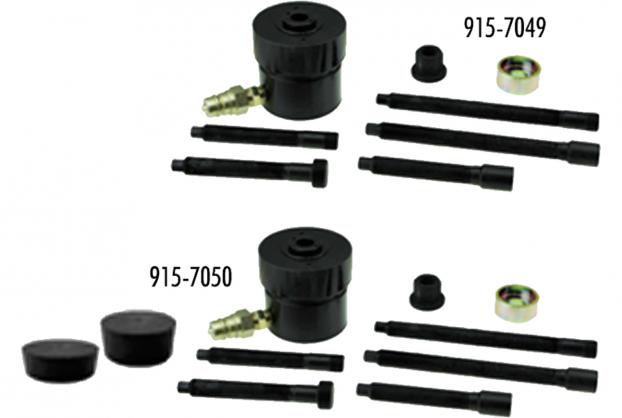

•This tool enables controlled, professional and safe extraction of very tight-fitting injection nozzles in conjunction with a special pull spindle, a injector nozzle puller with extraction bridge and a hydraulic-pump with manometer.
•The hydraulic-cylinder with shoulder nut together with a special pull spindle is placed onto the extraction bridge instead of a mechanical drive.
•The special manometer of the hydraulic pumps or ensures that the applied force can be checked during the extraction process.
•Maximum allowed force: 170 KN (17t).
•Maximum stroke: approx. 15 mm.
•Hydraulic oil connection: 3/8“-18  PT.
•Transmission bore in tubular piston: Ø 16.5mm.↑↓
•Cylinder overall height, piston retracted: 89mm.
•Cylinder overall height, piston extended: 104mm.
•Cylinder-Ø (outer): 79mm.
•1-Pull Spindele M14 x 1.5 (240mm).
•1-Pull Spindele M14 x 1.5 (315mm).
•1-Pull Spindele M17 x 1 (240mm).
•1-Pull Spindele M17 x 1 (315mm).
•1-Pull Spindele M25 x 1 (240mm).
•1-Distance ring.
