• The kit includes setting plates for locking the camshaft in the timed position.
• Setting plates are positioned in the place of the camshaft bearing cap.
• The kit also includes tensioning tool and balance shaft tensioner.

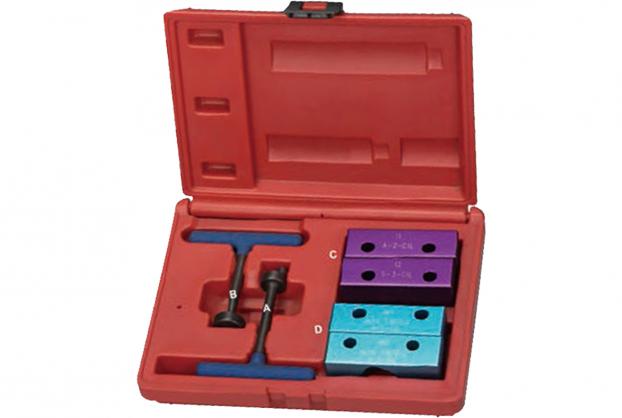

• A.) Tensioning Tool. OEM: 1 860 845 000.
• B.) Balance Shaft Tensioner. OEM: 1 822 154 000.
• C.) Setting Plates (Purple). OEM: 1 825 042 000.
• D.) Setting Plates (Blue). OEM: 1 825 041 000.

• Application:---
  1.4/4.6 Engine (Purple Setting Plates): 145/146/155/156 (96-01).
  1.8 Engine (Blue Setting Plates): 145/146 (96-01), 155/156 (96-06), Spider/GTV (98-01).
  2.0 Engine (Blue Setting Plates): 145/146 (96-01), 147 (01-07), 155/156 (95-02), 166 (98-01), Spider/GTV (96-03).

• IMPORTANT:---
  Setting plates are machined to match the exact profile on the camshaft in the timed position.
  Ensure the correct color and the inlet/exhaust setting plates use for the engine stated above.
  When installing setting plates or refitting the bearing cap, it always tights the bolts to the specified torque.
  Refer to the vehicle manufacturer service instruction, or the proprietary manual to establish the current procedure and data.

• Note:---
  The plates are bolted in the position in place of the specified camshaft bearing cap on the both inlet and exhaust camshafts.
  Alfa Romeo twin spark camshaft engine holds in the timed position by setting plates.
  The inlet setting plate replaces the bearing cap on No.2 cylinder and the exhaust setting plate replaces the bearing cap on No.3 cylinder.
