• Repair to the cylinder head or the engine when replacing a timing belt. Set is needed to determine the top dead center point of cylinder 1 on the working stroke, to hold the camshaft in this position and to permit the adjustment of the tensioning pulley.
• Suitable for: Alfa Romeo: vehicle with 1.4, 1.6, 1.8, 2.0, 3.0L, 4 and 6 cylinder engines on Alfa Romeo 145, 146, 147, 155, 156, 164, 166, GTA, GTV, Spider GT, Fiat / Lancia: vehicle with 1.2, 1.4, 1.6, 1.8, 2.0L, 4 and 5 cylinder engines on Fiat Panda, Punto, Palio, Siena, Bravo, Brava, Stilo, Marea, Multipla, Barchetta, Coupe, Lancia Dedra, Delta, Kappa, Lydra.

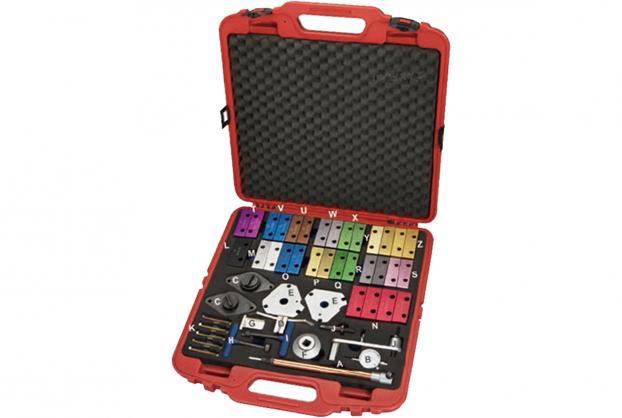

• A.) TDC Positioning Tool. OEM: T10170, 1 860 895 000. B.) Dial Test Indicator. OEM: 3313.
• C.) Fixing Gauge. OEM: 2 000 004 000, 1 870 823 000.
• D.) Flywheel Locking Tool. OEM: 1 860 898 000.
• E.) Camshaft Locking Tool (2pcs). OEM: 1 860 874 000.
• F.) Variator Socket for Alfa Romeo 16v Twin Spark. OEM: 1 852 161 000.
• G.) Flywheel Locking Tool. OEM: 1 860 771 000.
• H.) Balancer Shaft Belt Tensioning Tool. OEM: 1 822 154 000.
• I.) Tensioning Tool. OEM: 1 860 845 000.
• J.) Timing Belt Tensioning Tool. OEM: 1 860 876 000. K.) M7 x 45 mm
• L.) Locking Tool Set (Black). OEM: 1 860 899/1, 1 860 899/2.
• M.) Locking Tool Set (2pcs) (Silver). OEM: 1 860 961/1, 1 860 961/2.
• N.) Locking Tool Set (4pcs) (Red). OEM: 1 860 820/1, 1 825 040/2, 1 860 820/2, 1 825 040/3.
• O.) Locking Tool Set (2pcs) (Blue). OEM: 1 860 819/1, 1 860 819/2.
• P.) Locking Tool Set (2pcs) (Gold). OEM: 1 860 818/1, 1 860 818/2.
• Q.) Locking Tool Set (2pcs) (Green). OEM: 1 860 875/1, 1 860 875/2.
• R.) Locking Tool Set (2pcs) (Dark Gray). OEM: 1 860 847/1, 1 860 847/2.
• S.) Locking Tool Set (2pcs) (Pink). OEM: 1 860 892/1, 1 860 892/2.
• T.) Locking Tool Set (2pcs) (Purple). OEM: 1 870 734/1, 1 870 734/2.
• U.) Locking Tool Set (2pcs) (Brown). OEM: 1 825 042/1, 1 825 042/2.
• V.) Locking Tool Set (2pcs) (Light Blue). OEM: 1 825 041/1, 1 825 041/2.
• W.) Locking Tool Set (2pcs) (Light Gray). OEM: 1 870 797 000.
• X.) Locking Tool Set (2pcs) (Light Green). OEM: 1 870 859 000.
• Y.) Locking Tool Set (2pcs) (Bronze). OEM: 1 860 697 000.
• Z.) Locking Tool Set (2pcs) (Yellow). OEM: 1 870 797 000.
