Petrol Engine Setting / Locking Kit For Alfa Romeo, Fiat, Lancia 1.2 16V, 1.4 16V, 1.4T - Jet - Belt Drive

European Cars Repair Tools

914-5752

← →

Description
Specification

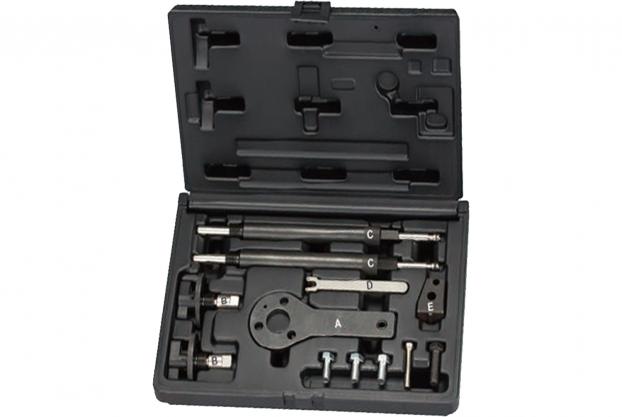

• A.) Crankshaft Locking Tool (Completed with M6 x 30 Hex Cap Screw x 1
        M8 x 16 Hex Cap Screw x 3).
        OEM (Alfa / Fiat / Lancia): 2.000.004.500.
• B.) Camshaft Setting Tool (2 per kit). OEM (Alfa / Fiat / Lancia): 1.860.985.000.
• C.) Piston Height Gauge (2 per kit). OEM (Alfa / Fiat / Lancia): 1.860.992.000.
• D.) Tensioner Adjuster. OEM (Alfa / Fiat / Lancia): 1.860.987.000.
• E.) Camshaft Sprocket Locking Tool (Completed with M8 x 30 Hex Cap Screw x 1).
        OEM (Alfa / Fiat / Lancia): 2.000.015.800.

• This kit contains the timing tool required to cover the belt replacement procedure
for the both early and later variant of the engine, it includes piston height gauge,
camshaft and crankshaft tools, tensioner adjuster and camshaft sprocket locking tool.
• This Fiat range of 1.2 16 valve petrol engine was first introduced as long ago
as 1997 in the Punto and a number of variant releases including 1.4 range of
16 valve / T-Jet engine.
• The majority of these engines use the same timing tool combination and
procedure for the timing belt replacement.
• However, engine code 192B2.000, 198A1.000, 198A4.000, 199A6.000 and
199A8.000 require an additional tool to ‘lock’ the camshaft sprocket, which
engine code 169A3.000 requires a different tool combination and has a slightly
different procedure. All the timing tools are included.
• Dependent upon the engine component which requires removal to gain accessed
to the timing belt, such as the right hand front wheel, the air filter, the radiator grille,
the timing belt covers, the auxiliary belt, the fuel rail / injectors and the spark plug.

• Application (Model):---
Alfa Romeo: Giulietta (10-12), MiTo (08-12).
Lancia: Delta (08-12), Musa (04-12), Ypsilon (96-11)
Fiat: 500 (07-12), Bravo (07-12), Brava / Bravo (98-02), Grande Punto (07-10),
          Grande Punto Abarth (07-10), Idea (04-12), Linea (07-10),
          Marea/Weekend (98-00), Palio Weekend (01-06), Panda (07-11),
          Punto (97-08), Stilo (01-08).
• Engine Code: 1.2 16v: 176B9.000, 182B2.000, 188A5.000.
                          1.4 16v/T-Jet: 169A3.000, 192B2.000 198A1.000, 198A4.000,
                                                   199A6.000, 199A8.000, 843A1.000.
